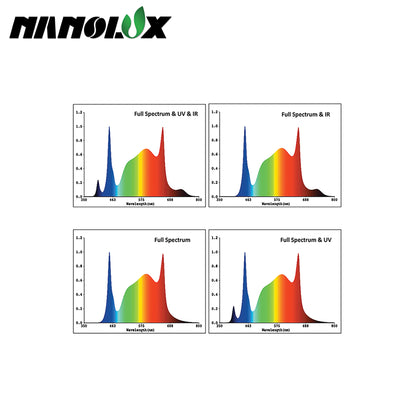

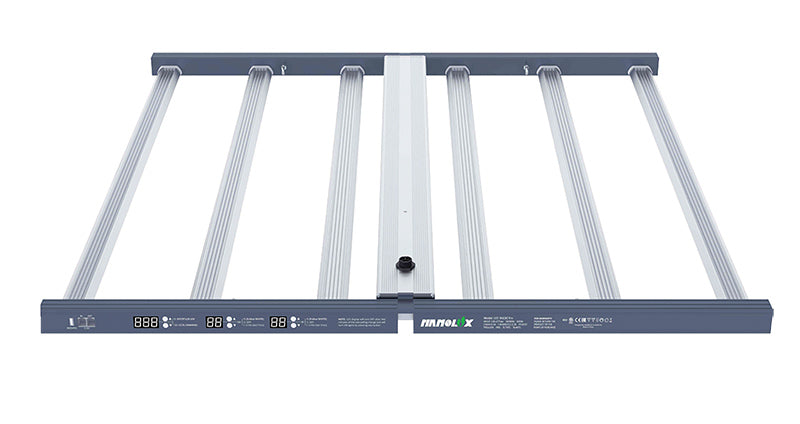

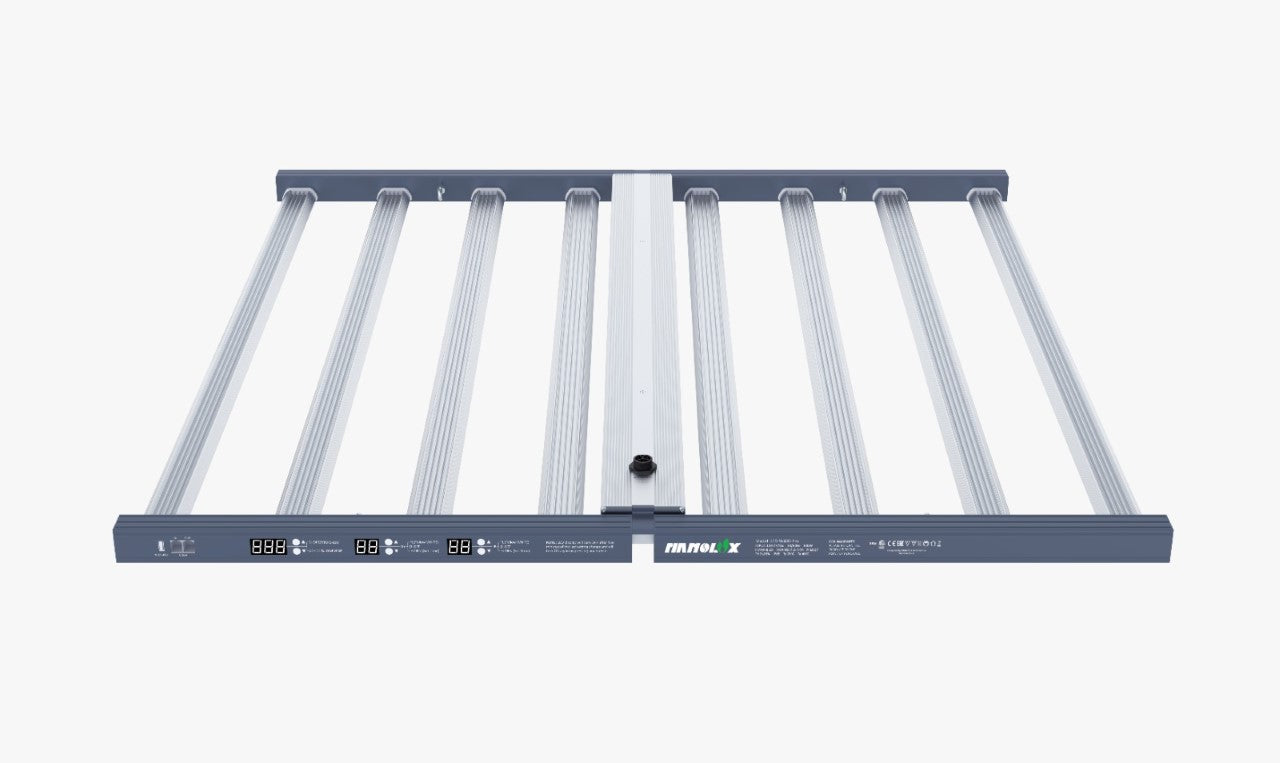

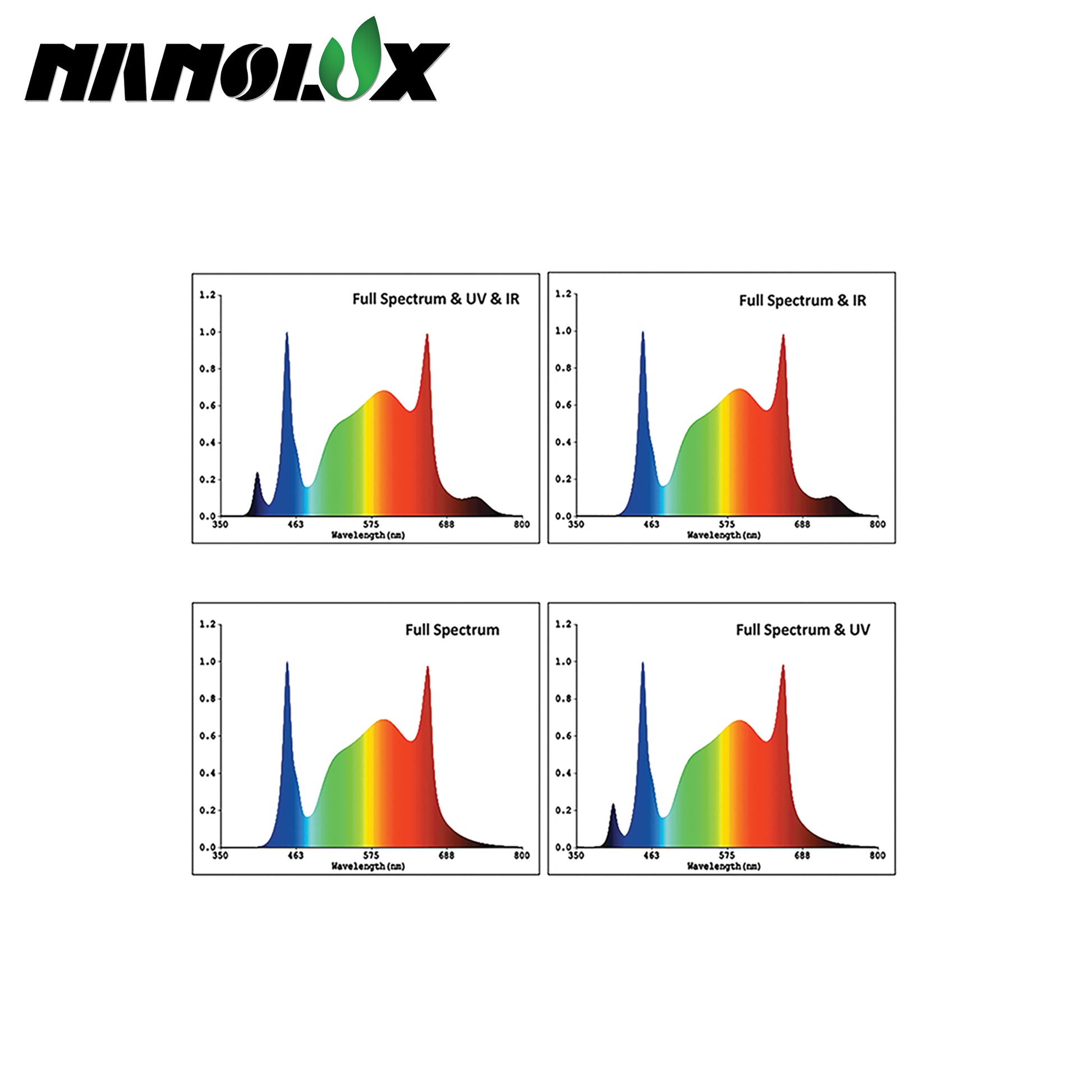

Nanolux LED SN series of LED fixtures are designed for professional growers looking for fixtures with higher output, better build quality and longer life span. The SN series features heavier finned light bars with a larger surface area and better heat sink, which keep the diodes cool and pro-long their life. The added IR and UV spectrum, which are used in small amounts are individually controlled by digital timers on the front of the unit from 1-12 hours. These greatly improve smell, taste and quality of the final product. The highly efficient 2.9 umol/j full spectrum diodes produce 1830/2410 umol/s and can be accurately dimmed with the digital dimming function on the front of the unit from 30 -100%. or 20% -100% with the Nanolux touch 0-10v controller. All SN series fixtures have an IP65 rating, they are sealed from dust and moisture entering the unit and can be reliably used in environments up to 95% humidity
Specs
Efficiency: 2.9 μmol/J
Light distribution: 120
Hang height: >30" (80cm) above canopy
Operating temperature: 0°C~35°C
Operating humidity: 0-95%
Lifetime: > 50,000hrs Warranty: 5 years standard warranty
Light output
630w: PPF:1830 μmol/s
830w: PPF 2400 umol/s
Features

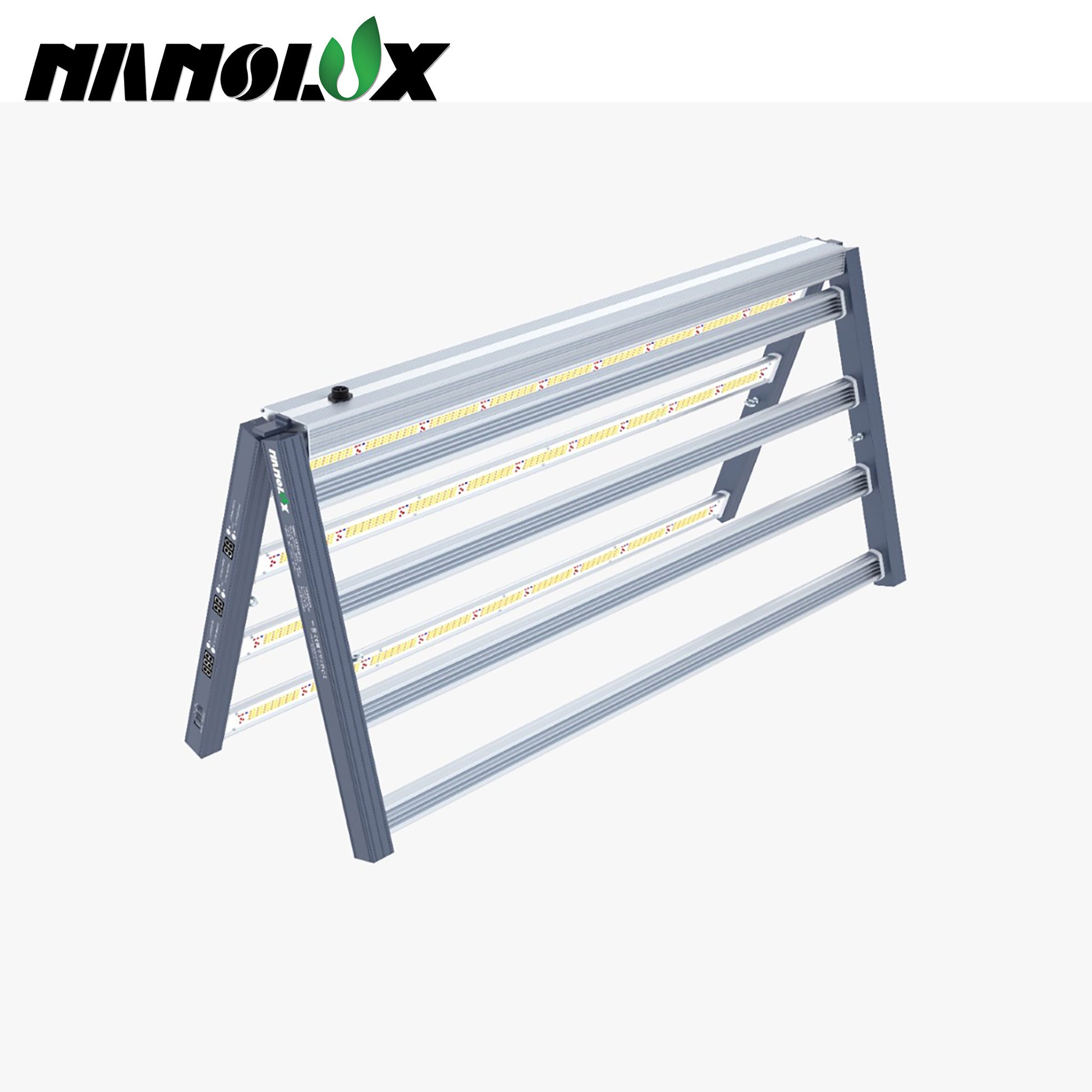

The classic fold-able design is easier to transport and store.

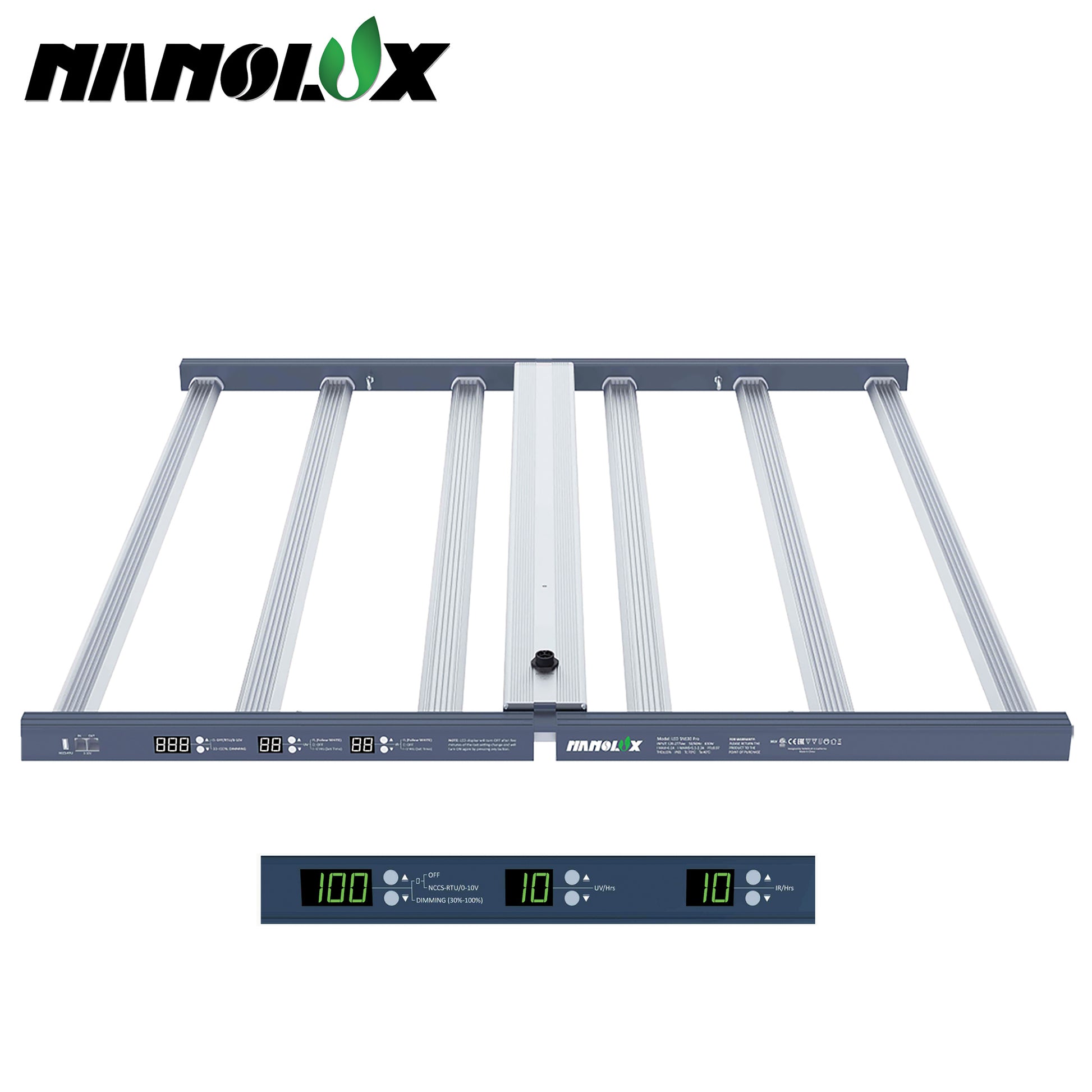

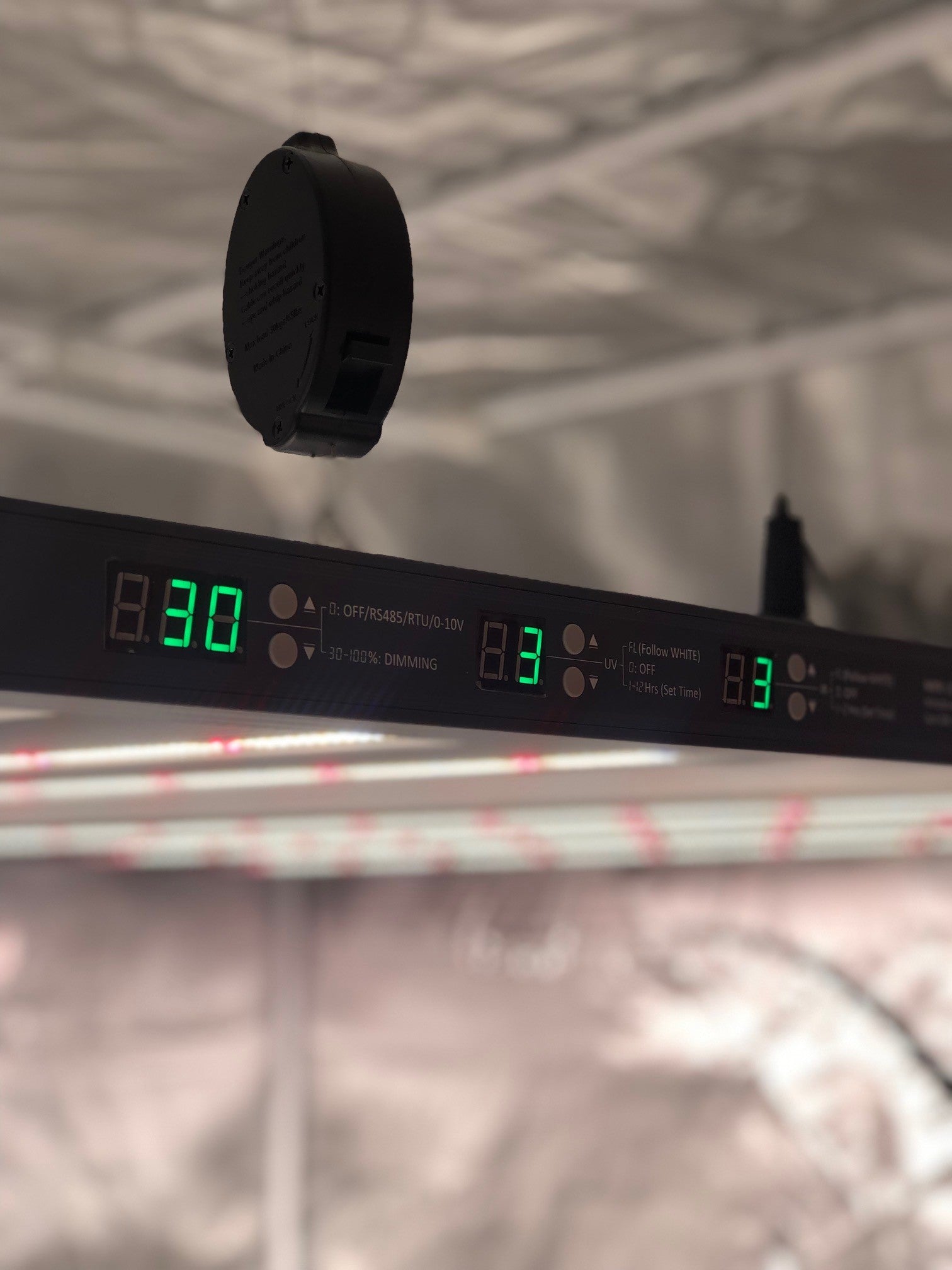

Manual digital dimming control buttons with a range of
630w: 120W, 150W, 235W, 315W, 390W, 470W, 550W and 630W.
830w: 30% - 100%
0-10V compatible, can be used with the Nanolux 0-10v touch screen controller.
NCCS compatible, can be used with the Nanolux NCCS bluetooth controller
Random start, soft start, soft dimming, over-temperature, over-voltage and open/short circuit protection, making it safer for users.
Smart digital control with LED bar protection function. If one or several bars fail, the other bars will compensate and the light output will not be affected.
